Περιγραφή

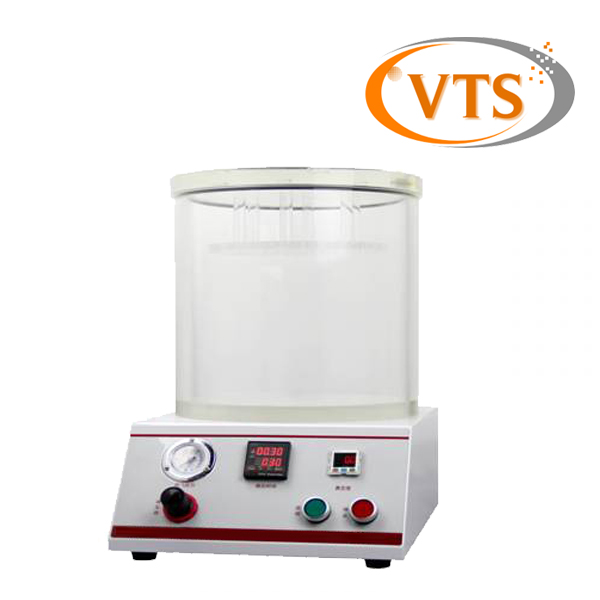

Vacuum Leak Tester
Εισαγωγή
The tester is applicable in testing the seal of soft packaging in food and pharmaceutical industry. It can test the seal capability of soft packaging accurately, which provides scientific data for relative technical requirement. It also can test the specimen which has done the drop and compression test. The product is designed and manufactured according to GB/T15171-94 (the Seal Testing Method for soft packaging).
Application Products
Flexible packaging bags, Hard bottles, drug bottles, Metal Cans, Blister Packaging, Composite packaging.
Test Principle
It uses negative pressure method to vacuum the chamber, which makes the submerged specimen generating inner and outer pressure differential. To observe the situation of air escape from specimen, thus to evaluate the seal performance of the package.
Main Specifications
| Technical Specifications |
| Vacuum Degree 0- 90kPa |
| Vacuum Accuracy 1FS |
| Gas Supply Pressure 0.5MPa～0.7MPa |
| Vacuum hole time 0-60min |
| Vacuum room size Φ270 mm x 210 mm (H) (Πρότυπο) Φ360 mm x 585 mm (H) (Προαιρετικός) Φ460 mm x 330 mm (H) (Προαιρετικός) |
| Overall tester size 430mm x 330mm x 170mm (L x W x H) |
| N.W. 9Κιλά |
| Environment Requirements |
| Air Pressure 0.5-0.9KPa |
| Temperature 15℃-50℃ |
| Relative Humidity No more than 80%, no dewdrop |
| Power Supply 1-phase, 220V, 50Hz |
Παρατήρηση: the customer self provide air source.
