Brochadora manual de muescas CSL-A
Manual Notch Broaching Machine for Charpy Impact Test Specimen
Cutting knife: One V-notch or one U-notch
- Descripción
- Consulta
Descripción
Brochadora manual de muescas CSL-A (Notch Cutter)
(For making U-notch and V-notch of Impact sample)
1. Solicitud & Funciones:
Impact sample gap/notch broaching machine is the only facility to process regular sample gap/notch except for optical curve grinder in China. Due to one time form processing principle, the identity of machining gap/notch is very good. The series of machine can be divided into two kinds, manual mode and electric hydraulic mode. U type and V type are all made with W18Cr4V material to assure its high rigidity, good wearable. Each broach can be used for about more than 20000 veces.
2. Estándares:
The series machines comply with GB2106-80 “Metal Charpy (V type) Gap Impact Test Method” and GB229-94 “Metal Charpy (U type) Gap Impact Test Method”. It can also meet American standard, European standard ASTM、E23-02a、EN10045、ISO148、ISO083, etcétera.
3. Especificaciones técnicas principales:
Modelo | CSL-A |
Cut mode | Manual mode |
Shape of sample gap | V notch ,U notch |
Tamaño de la muestra | 10×10×55mm |
Broach moving distance | 350milímetros |
Broach material | W18Cr4V |
Dimensions of host machine | 350×350×700mm |
Peso neto | 100kg |
4. Cutting knife for charpy impact test specimen

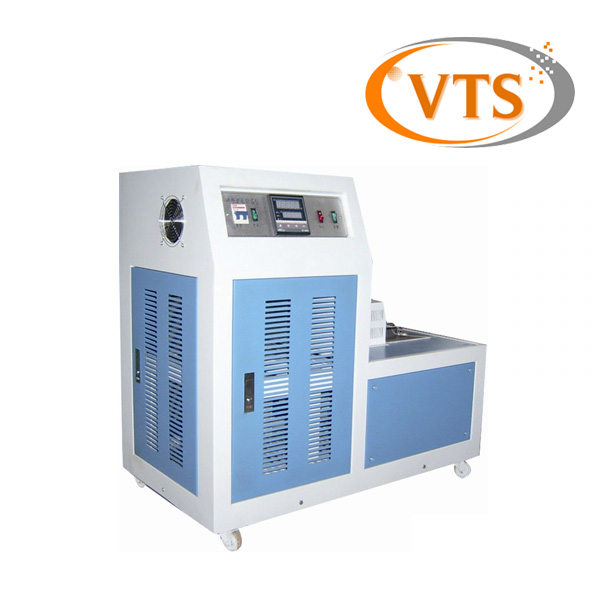

Besides Notch Broaching Machine, we also have Charpy Impact Testing Machine (300j, 500j, 600j, 750j), Cámara de baja temperatura (-30C, -60C, -80C, -100C, -196C).
