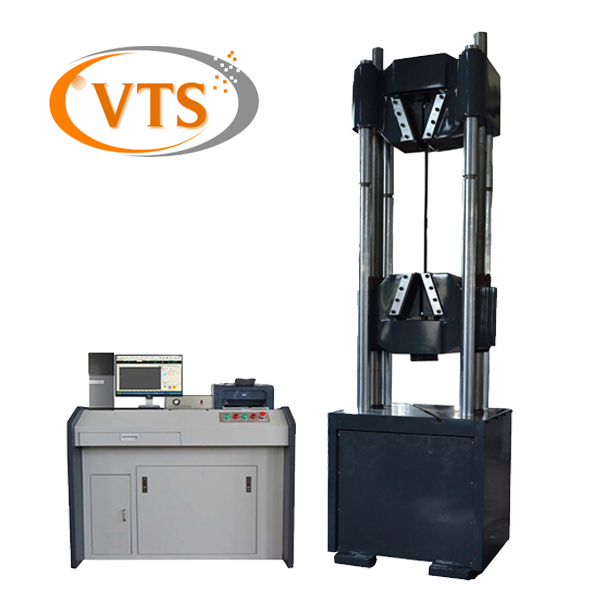

ASTM A615 Deformed Steel Bar Tensile and Bend Testing Machine
(300kN, 600kN, 1000kN, 2000kN, 0.5 Class)
1. Applications:
WAW-E Series Computerized Electro-hydraulic Servo Universal Testing Machine is newly designed for tensile and bend test of deformed and plain carbon-steel bars. It adopts four column and two screws structure, high stiffness. It uses high accuracy load cell to measure testing force, encoder to measure displacement of work bench, electric extensometer to measure extension. Close loop control software can auto get test tensile strength Rm, yield strength ReH/ ReL, max na max. testing force Fm, non-proportional extension Rp0.2, elongation rate A%, extension at max. testing force Agt, modulus of elasticity E, etc testing results. In testing standard, it conforms to international standards, like ASTM A615, BS 4449, ISO6892, ASTM E8, ISO15579-2000, ISO679, ISO7438-1985, JIS Z2241 and other international specifications.
2.Main technical parameters
| Parameter Model | WAW-300E | WAW-600E | WAW-1000E | WAW-2000E |
| Max. testing force (kN) | 300 | 600 | 1000 | 2000 |
| Katumpakan | ±0.5% of reading value | |||
| Round specimen diameter range (mm) | φ10-φ32 | φ10-φ40 | φ8-φ40 | Φ15-φ50 |
| Flat specimen thickness range (mm) | 0-25 | 0-30 | 0-40 | 10-70 |
| Flat specimen width range (mm) | 75 | 90 | 100 | 120 |
| Tensile space (mm) | 600 | 740 | 800 | 800 |
| Compression space (mm) | 530 | 650 | 670 | 700 |
| Clearance between columns (mm) | 465 | 485 | 515 | 700 |
| Upper and lower compress plates size (mm) | φ120 | φ160 | 204×204 | 200×200 |
| Distance of bending by pass roll (mm) | 30-400 | 30-430 | 30-380 | 50-450 |
| Max. piston stroke (mm) | 200 | 200 | 250 | 250 |
| Suplay ng kuryente | 380V±10%, 50Hz, three phase | |||
| Work environment | 10-40℃, Relative humidity≤80% | |||
| Dimension of host machine (mm) | 740×620×2058 | 790×690×2330 | 880×760×2660 | 1200×1100×3500 |
| Dimension of control cabinet (mm) | 1150×870×900 | |||
| Timbang (kg) | 1800 | 2500 | 3500 | 9500 |
