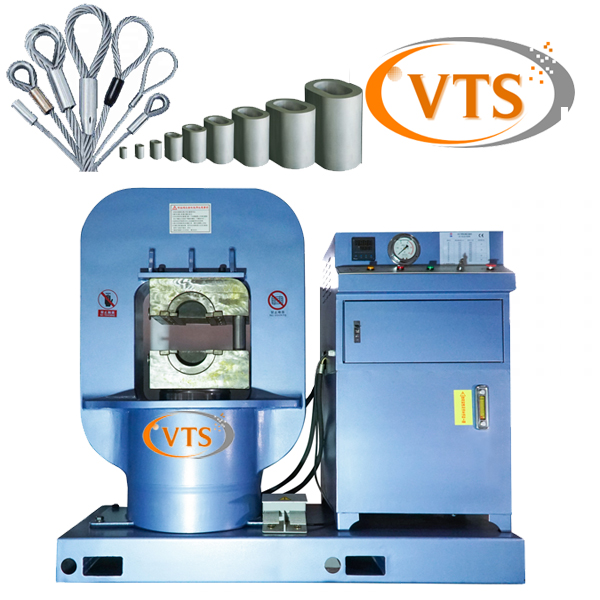

500Machine à sertir les câbles métalliques d'une tonne
Capacité de chargement: 500MT, 650MT, 800MT, 1000MT, 1600MT, etc..
Casting alloy steel, high strength
- Description
- Enquête
Description
500Machine à sertir les câbles métalliques d'une tonne
Introduction

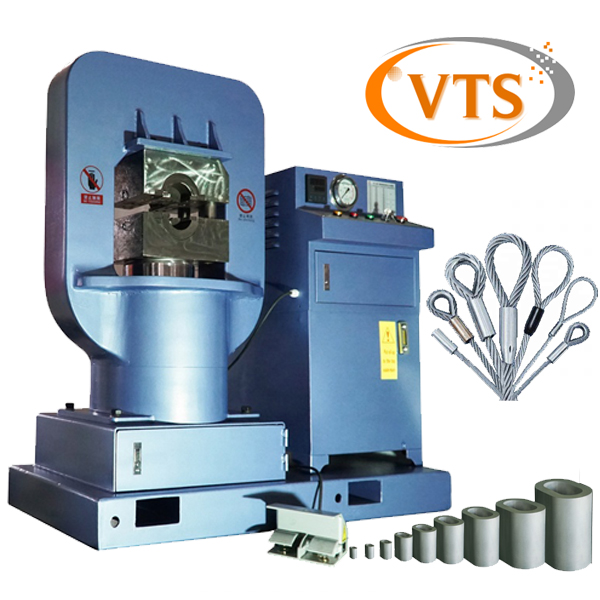

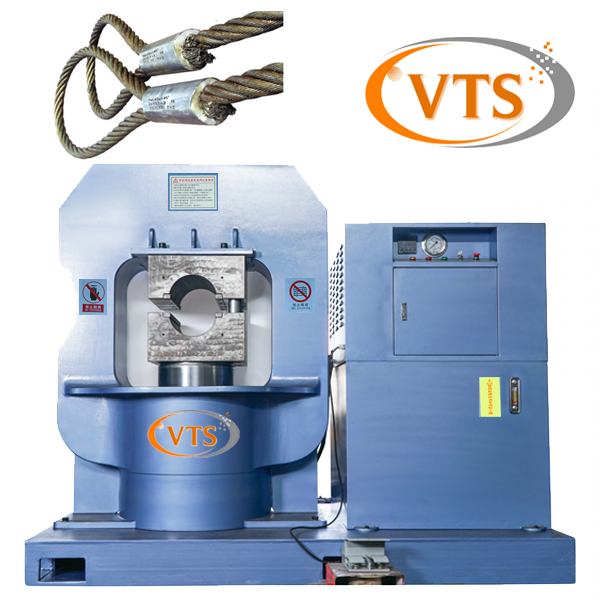

GT Series Wire Rope Swaging Machine is our new generation product.
It has compact form, good looking appearance, and it is easy to operate.
The completed wire rope sling has advantage of high-intensity.
Caractéristiques:
- It’s built in high strength alloy steel, high working stiffness.
- High and low pressure pump oil system makes piston upwards and downwards fast, improves the working efficiency.
- Strong corrosion resistance, saving wire rope cost
- Ensure exact length
- An emergency stop button, quickly stop working.
- The dies are made of high quality die steel and undergo high temperature heat treatment, quenching, tempering, etc process, which makes them sturdy and durable.
Model and Specification:
| Model No. Caractéristiques | GT-300 | GT-500 | GT-650 | GT-800 |
| Max.. pressure capacity (MT) | 300 | 500 | 650 | 800 |
| Aluminum ferrules (one /multi-stage) | Φ24 /Φ32 | Φ32 /Φ42 | Φ38 /Φ48 | Φ42 /Φ52 |
| Power (KW) | 2.2 | 4 | 5.5 | 7.5 |
| Max.. oil pressure (Mpa) | 56 | 56 | 56 | 56 |
| Max.. course du piston (millimètre) | 80 | 100 | 160 | 180 |
| Loaded speed (mm/sec) | 5 | 5 | 5 | 5 |
| Unloaded piston (mm/sec) | 8 | 8 | 8 | 8 |
| Dimension (L×W×H, millimètre) | 1200×600×1300 | 1500×610×1600 | 1650×650×1600 | 1800×700×1700 |
| Poids net (kg) | 900 | 1500 | 2500 | 3500 |
