Machine de test de torsion en fil métallique
Wire Torsion Testing Machine
Diamètre de l'échantillon: Ф0.3- F10mm
- Description
- Enquête
Description

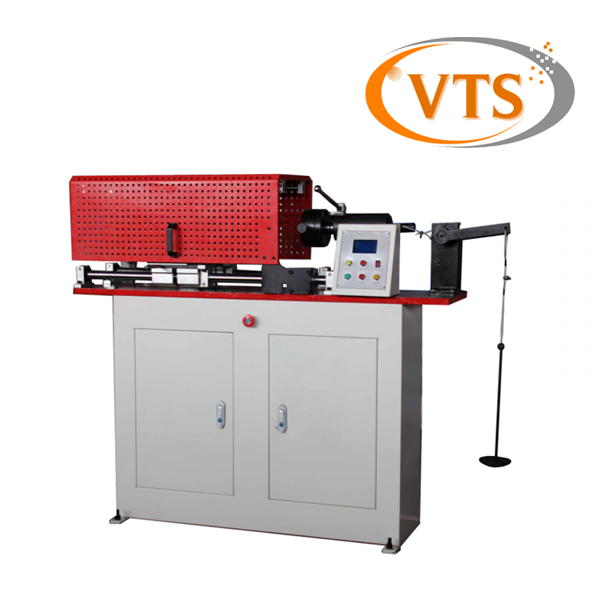

NDX Series Metal Wire Torsion Testing Machine
(Ф0.3- F10mm)
Fonctions principales
The series of test machine mainly used to test the capacity of bearing deformation of the metal wires and other wire ropes whose diameter are φ1~φ10mm during the reversing. The test can show the surface defects of wire during the test process.
Spécifications techniques principales
| Specifications Model | NDX-1 | NDX-3 | NDX-10 |
| Diamètre de l'échantillon (MM) | Ф0.3- Ф1 | Ф1- Ф3 | Ф3- Ф10 |
| Vitesse d'essai (rev/min) | 60, 180, 300 | 60, 90, 120 | 30, 60 |
| Length of camping wire (MM) | 100- 300 | 300- 500 | |
| Max. counting circle | 999.9 | ||
| Grip hardness (HRC) | 55- 65 | ||
| Work noise (dB) | <70 | ||
| Alimentation électrique | 3-phase, AC 380V±10%, 50Hz | ||
