Prestressing Steel Tensile Strength Testing Machine
In test standard, it conforms to ISO 15630-3，ISO6892, ASTM A615, ASTM
A416, וכו.
- תיאור
- חֲקִירָה
תיאור

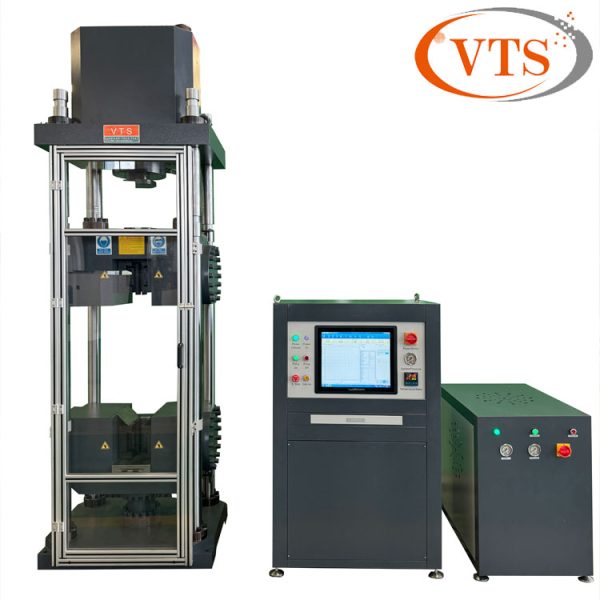

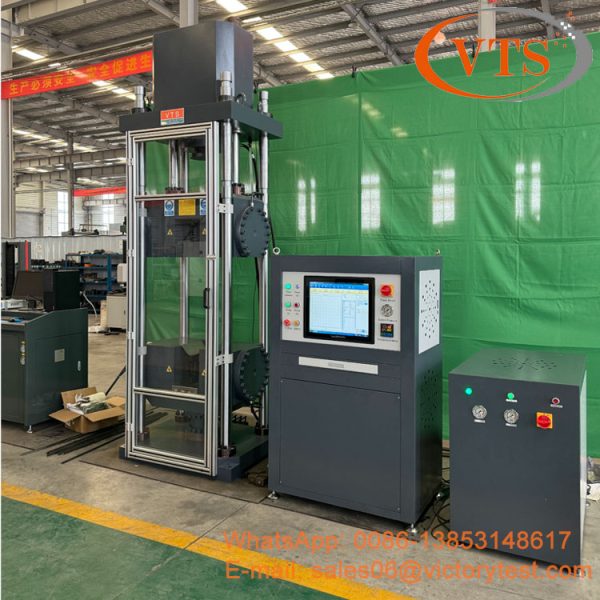

Prestressing Steel Tensile Strength Testing Machine
WAW-S Series Computerized PC Strand Tensile Testing Machine
(600kN, 1000קיבולת kN, 4עמודות, 0.5 דיוק בכיתה)
1. מבוא
Our Prestressing Steel Tensile Strength Testing Machine Capacity Double Test Space UTM,
double hydraulic action tensile grips.
Function

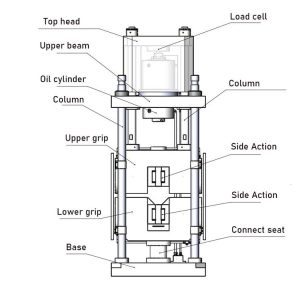

Prestressing Steel Tensile Strength Testing Machine is a 4 column double test space, hydraulic
operated tensile grips UTM with oil-cylinder mounted on the
top position.
Prestressing Steel Tensile Strength Testing Machine adopts advanced double action hydraulic operated tensilegrip, large constant clamping force, well avoid slippage
during tensile test. It can be used for test rebar, steel strand.
Independent power pack for tensile grips, it has an energy
accumulator, which insure the constant clamping force.
High precision load cell to measure testing force, encoder

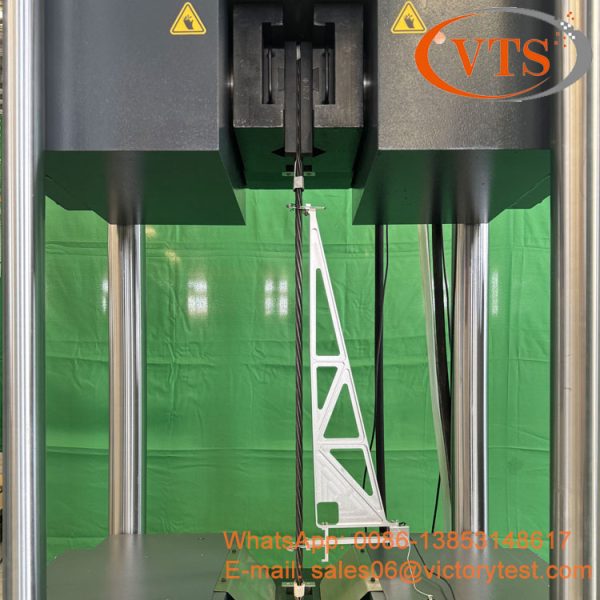

measure displacement, extensometer to measure
elongation. It is calibrated according to ASTM E4 and
ISO7500-1.
In test standard, it conforms to ISO 15630-3，ISO6892, ASTM A615, ASTM
A416, וכו.
Prestressing Steel Tensile Strength Testing Machine is designed for tensile strength test Rm, measuring non-proportional extension Rp0.2, etc of PC strand (prestress steel strand).
2. פרמטרים טכניים עיקריים
| דֶגֶם Parameter | WAW-600S | WAW-1000S |
| מקסימום. כוח בדיקה (kN) | 600 | 1000 |
| Accuracy of testing force measuring | ±0.5% מערך הקריאה | |
| Load measuring range | 1%-100% FS | |
| Accuracy of deformation measuring | ±0.5% FS | |
| PC Strand clamping range | Φ15.2mm, other diameter are optional | |
| מרחב מתיחה | 1100מ"מ | |
| Extensometer חשמלי | Gauge length 500mm, מקסימום. סיומת:15מ"מ | |
| מקסימום. מהלך בוכנה | 250מ"מ | |
| ספק כוח | 3-שלב, 380V±10%, 50הרץ | |
| מימד של מכונה מארחת | 980×700×3210mm | 980×700×3210mm |
| גודל ארון בקרה | 920×590×1500mm | 920×590×1500mm |
| מִשׁקָל | 3500ק"ג | 4500ק"ג |

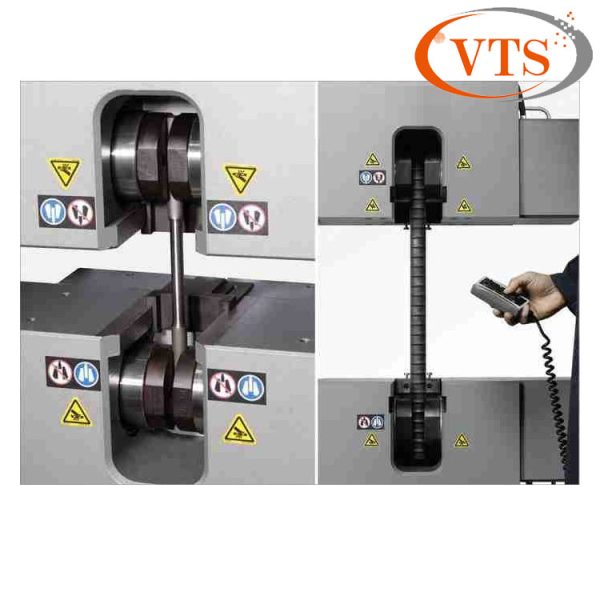

3. Professional tensile jaw:
Four pieces of tensile jaws are inserted into the tensile grip seat, then it adopts hydraulic operated the clamping and loosen of PC stand. The good quality tensile jaws are endurable, long life. It can tighten holding the sample without any loosen or slippage during the test. The well adjusted clamping force can not make the sample broken at the ends of clamping, it would break at the middle position of the smple.

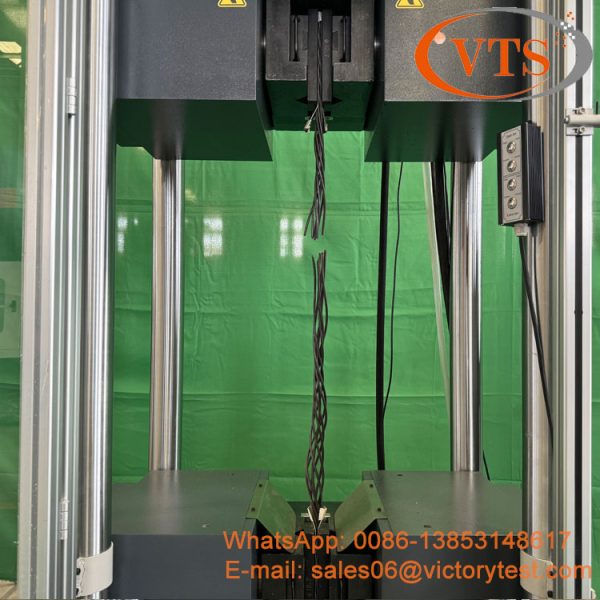

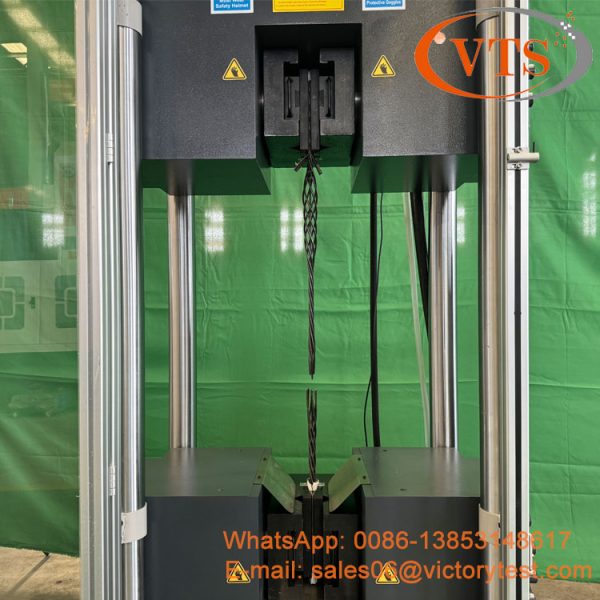

4. Break Test
