Rebar Automatic Bend and Rebend Testing Machine- GW-50C
Automatic Rebar Bend and Rebend Testing Machine is used for auto bend test and rebend test of steel bar, deformed steel bar, וכו.
- תיאור
- חֲקִירָה
תיאור
Rebar Automatic Bend and Rebend Testing Machine- GW-50C
(Auto type, Hydraulic servo control loading and unloading)
יישום & מאפיינים:

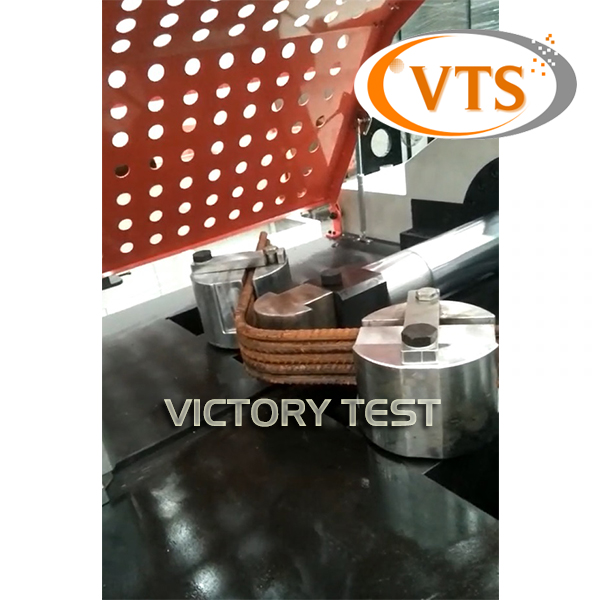

This testing machine is our company’s newly designed automatic bending and reverse bending test for steel bar. It adopts three oil cylinders to loading, the mandrels are mounted on the front of piston rod, the two bend supporting rollers are driven by leading screws, the span is adjustable. PLC controls the working of oil cylinder and bend angle, one time to complete the bending and reverse bending. It greatly improves the testing efficiency.
It has advantages of compact structure, ניתוח קל, bending and reverse bending angle displayed real time, low noise, no vibration, long life, easy maintenance, וכו.
It has electric type limit switch, more flexible and durable in use.
It has second time shape forming function on 180 degree bending test.
Touch screen control, the customer can only need to select the diameter of the test rebar. The testing machine will auto adjust the test span.
Servo control loading and unloading.
Testing standards
It can conform to testing standard such as ISO 15630-1,2,3, ASTM A615/A615M, BS 4449, BS EN 10025.
מפרט טכני עיקרי:
| דֶגֶם | GW-50C |
| Range of bend steel bar’s diameter | Φ6-φ50mm |
| Angle of bend test | 0°-180° (Φ12-Φ36mm) 0°- 90° (Φ6-Φ50mm) |
| Angle of reverse bend test | 20°, 23° (Φ6-Φ50mm) |
| Maximum loading capacity | 500kN |
| Main piston stroke | 470מ"מ |
| Secondary piston stroke | 250מ"מ |
| Maximum hydraulic system pressure | 31.5 MPa |
| Mandrel diameter range | Φ18- Φ450mm (עשוי בהתאמה אישית) |
| Motorized adjust test span between two supporting rollers | 0-500מ"מ (one key adjusted for different diameter bar.) |
| Large touch screen control meter | Auto keep test records |
| Real time display bending angle | High precision Japanese Encoder |
| Mandrel diameter specification | D= 3~9 d |
| Full digital servo motor power | 5.5קילוואט (loading rate can be controlled) |
| Motor power supply | 3-שלב, 380V, 50Hz/60Hz |
| Dimensions of Host Machine (Length*Width*Height) | 2000×1000×1100mm |
| Weight of Host machine | 2000ק"ג |
