2000kN Single Test Zone Computerized Tensile Testing Machine
負荷容量: 300kN, 600kN, 1000kN, 2000kN
Model: WAW-300L, WAW-600L, WAW-1000L, WAW-2000L
Test space: single test zone
Control mode: computer controlled
- 形容
- Inquiry
形容
2000kN Single Test Zone Computerized Electro-hydraulic Servo Tensile Testing Machine
(Single test zone, 2000kN, or 600kN, 1000kN)
1. 導入

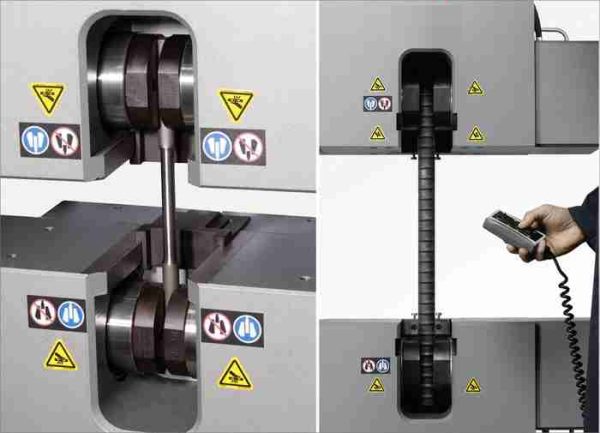

This single test zone WAW-L series Computerized Electro-hydraulic Servo Tensile Testing Machine are used for tensile strength test of metal materials, especially for long length testing materials, like steel bar, deformed steel bar, 等. It is newly designed, it has large testing space, all type of tests are executed in the lower testing space, convenient for operation. Quick testing speed improves the working efficiency. It’s an ideal testing machine for large iron and steel manufacturers for daily test of their metal materials. The machine is calibrated according to ISO 75001 and ASTM E4.
2. 主な技術パラメータ
Parameter Model | WAW-600L | WAW-1000L | WAW-2000L |
マックス. 試験力 (kN) | 600 | 1000 | 2000 |
正確さ | ±0.5% | ||
Round specimen diameter range (んん) | Φ14-φ60 | φ14-φ60 | φ13-φ60 |
Flat specimen thickness range (んん) | 0-60 | 0-60 | 0-40 |
Flat specimen width range (んん) | 70 | 80 | 120 |
Tensile space (んん) | 700 | 700 | 850 |
マックス. piston stroke (んん) | 680 | 680 | 250 |
電源 | 380V±10%, 50Hz, three phase | ||
Work environment | 10-40°C°C, 相対湿度≤80% | ||
Dimension of host machine (んん) | 1000×780×3160 | 1000×750×3160 | 1220×750×2640 |
Dimension of control cabinet (んん) | 1010×650×870 | ||
Weight (kg) | 4500 | 5000 | 4500 |
さらに詳しい情報については, please contact us by email: sales@victorytest.com
