비디오 신율계
Video Extensometer is an optical non-contact type three-dimentional deformation measuring system based on DIC(Digital Image Correlation)measurement method. It can accurately measure the 2D & 3D strain property of materials and components. Meanwhile, it can also be applied for testing and displacement measurement of 3D Profile-Displacement-Deformation of various metals and nonmetals, under static & dynamic deformation tests.
- 설명
- 문의
설명

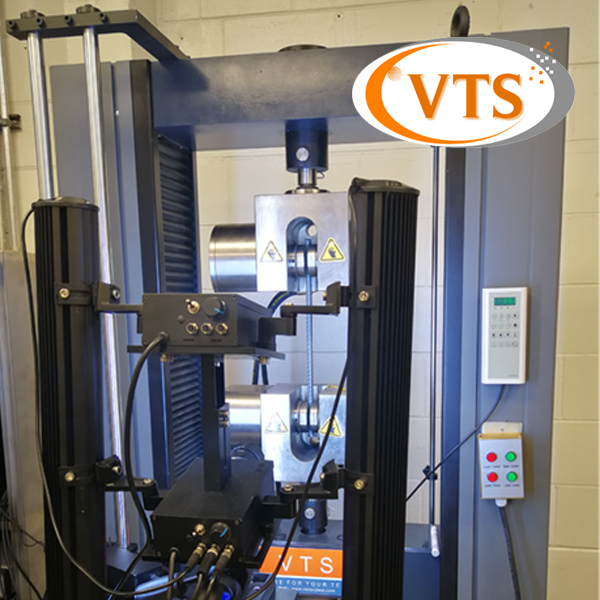

RTSS Video Extensometer
애플리케이션:

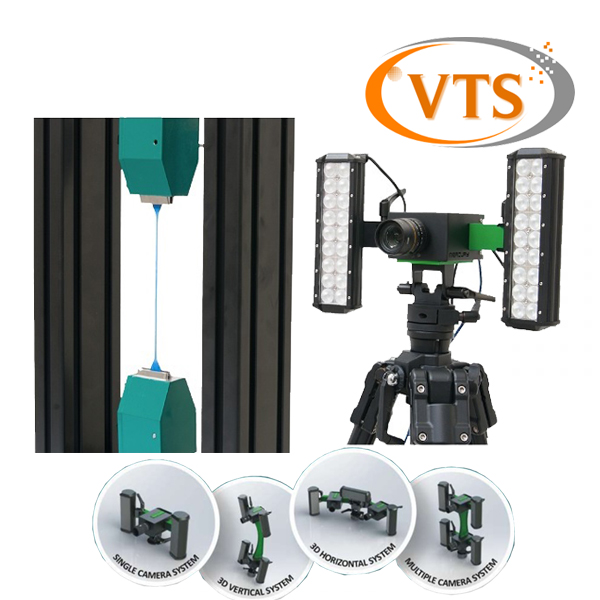

RTSS Video Extensometer is an optical non-contact type three-dimentional deformation measuring system based on DIC(Digital Image Correlation)measurement method. It can accurately measure the 2D & 3D strain property of materials and components. Meanwhile, it can also be applied for testing and displacement measurement of 3D Profile-Displacement-Deformation of various metals and nonmetals, under static & dynamic deformation tests.
특징:
- Non-contact ·High temperature
- Material independent ·High speed
- Geometry independent ·Connectivity to large number of test rigs types
- 2D and 3D measurement ·Smallest to largest object sizes
- Mobile and flexible ·Smallest to largest deformations
- High accuracy ·Easy specimen preparation
- Video stroboscopic functionality (synchronization with periodic phenomena)
- Customizable export formats
Specifications of Video Extensometer：
| Parameters | Range* | Typical system |
| ISO 9513 Classification to ISO 9513 | 수업 0.2, 0.5, 1, 2, – | 수업 1 |
| ASTM E 83 Classification to ASTM E 83 | Class A, B-1, B-2, 씨, 디, E | Class B-1 |
| (FOV) | 2-2000mm | 60mm |
| 게이지 길이 | 0.01-800 % | 0.01-10 % |
| 해결 | 0.1-50** 하나 | 1하나 |
| Analog output | 10-16 bit | 4V/14 bit |
| Digital output | RS232/422/485, TCP/IP | TCP/IP |
| Test rig connectivity | Connect to all kinds test rigs | Connect to all kinds test rigs |
| Camera resolution | 0.3-29 MPx | 1.2 MPx |
| Data rate | 0.1-10 000 헤르츠 | 50 헤르츠 |
* Range depending on the configuration
** Could be increased by different optical system
