Tindakan sampingan Tegangan Grip 100kn Mesin Ujian Universal
Hydraulic operated side-acting tensile grip
Kapasiti beban: 50kn, 100kn, 200kn, 300kn, dan lain-lain.
Bahan ujian: bar keluli cacat, bar keluli, flat specimen, dan lain-lain.
- Penerangan
- Siasatan
Penerangan
Tindakan sampingan Tegangan Grip 100kn Mesin Ujian Universal
WDW-100L Computerized Electromechanical Mesin Ujian Universal
(100kn, Jenis berdiri lantai, 0.5 kelas, side-acting hydraulic operated tensile grip)
Aplikasi & Functions of 100KN Universal Testing Machine

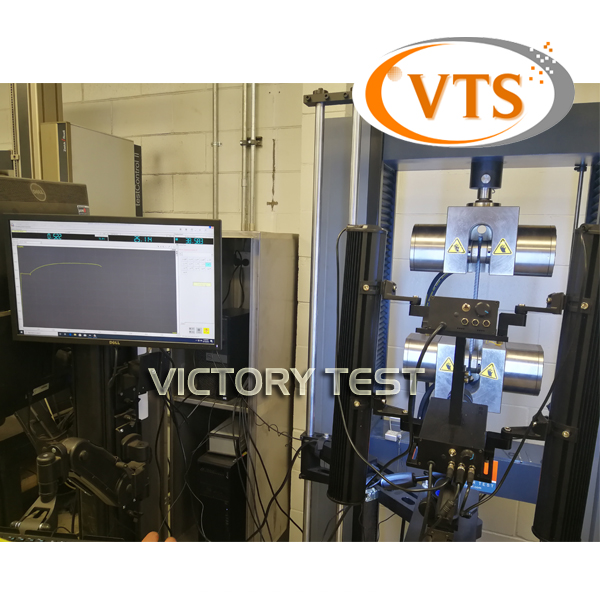

WDW-50L WDW-100L Computerized Electromechanical Universal Testing Machine is newly designed UTM with side-acting hydraulic operated tensile grip. Advanced side action hydraulic tensile grips provide high gripping performance for high strength and high hardness materials without any initial gripping force.
It is suitable for tensile, mampatan, bending and other test for metal and non-metal materials, seperti keluli, aluminium, Tembaga, Geotextile, plastik, getah, benang, kayu, aloi, PVC, Spring, Kawat dan kabel elektrik, komposit, Bar profil, roll kalis air, dan lain-lain. Mereka adalah instrumen ujian penting untuk bahagian ujian kualiti, Universiti dan Kolej, Institusi Penyelidikan dan Perindustrian dan Perlombongan. Mesin dikalibrasi sebagai ASTM E4, ISO 75001 Standard Antarabangsa.
Piawaian
ASTM A370, ASTM E4, ASTM E8, ASTM E9, ISO6892, ISO7438, ISO7500-1, DALAM 10002-4, GB/T228-2002, dan lain-lain.
Spesifikasi Teknikal Utama:
| Model | WDW-100L |
| Host Machine Structure | double space, Jenis berdiri lantai |
| Max Load Capacity (kn) | 100 |
| Class of Machine | 0.5 |
| Load Range | 0.4%-100% Fs |
| Load Accuracy | Within ±0.5% of indicating load |
| Load Resolution | 1/500000 |
| Range of Deformation | 4%-100%Fs |
| Resolution of Deformation (mm) | 0.001 |
| Accuracy of Displacement | Within ±0.5% of indicating value |
| Resolution of Displacement (mm) | 0.01 |
| Range of Testing Speed (mm/min) | 0.01 – 500 |
| Max Tensile Space(mm) | 600 |
| Maks. Ruang mampatan (mm) | 500 |
| Ruang antara lajur (mm) | 550 |
| Persekitaran kerja | Room temperature 10℃~30℃, relative humidity≤80% |
| Bekalan kuasa | 3-fasa, 380V±10%, 50Hz, 3kW |
| Dimension of Host Machine (L×W×H, mm) | 1120×710×2210 |
| Berat bersih(Kg) | 1200 |
