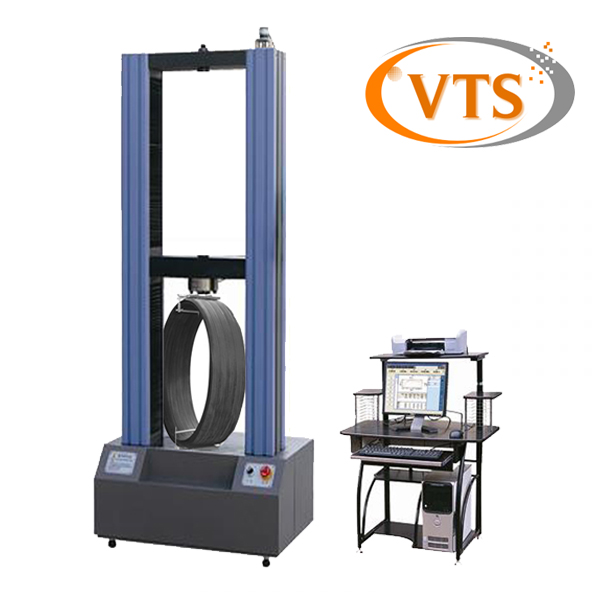

Plastrør Ring Stivness Testing Machine

Beskrivelse

applikasjoner & Functions

This machine is mainly used for the ring stiffness test (including ring softness test and flatness test) of all kinds of tubular materials. To meet with special needs, it can add three functions, i.e. tension, compression and bend. This machine is one kind of multifunction electronic universal testing machine.

Hoved tekniske spesifikasjoner:

1. Maximum testing force: 20kN

2. Measuring range of testing force: 0.2-20kN

3. Nøyaktighet av testkraft: ±1 %

4. Bredde på å teste plass: 370mm

5. Speed of compression: 0.01～500mm/min, Variable speed

6. Diameter range of pipe specimen: 20-500mm or 200-1500mm

7. Strømforsyning: 1-fase, 220V±10 %, 50Hz

8. Working Environment：10℃-30℃,relative humidity≤80%
