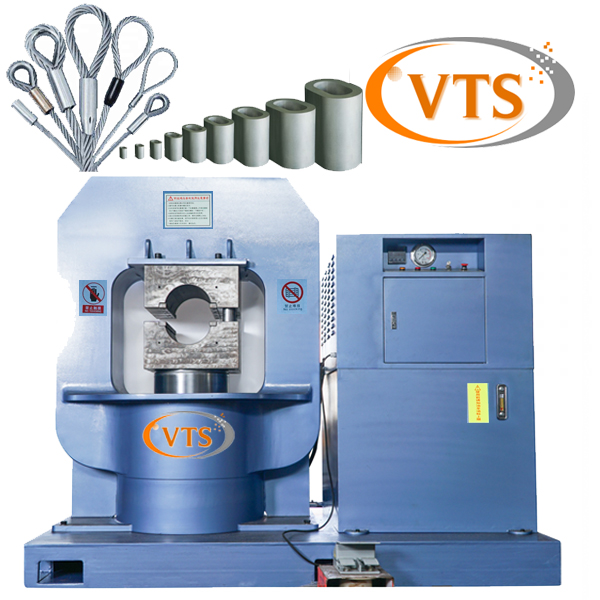

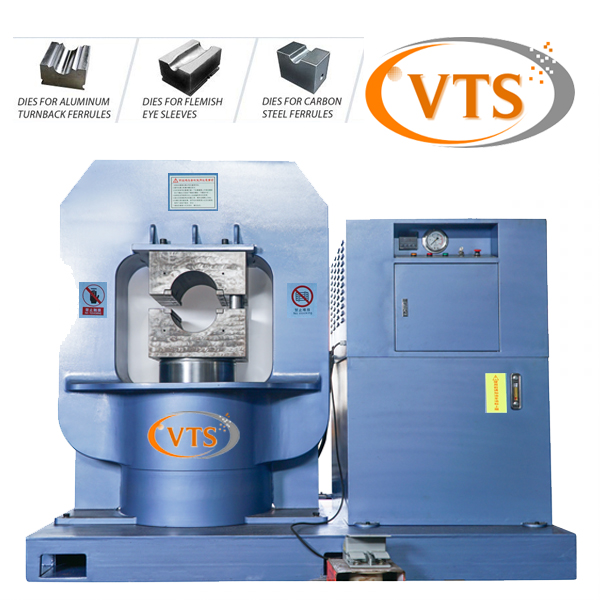

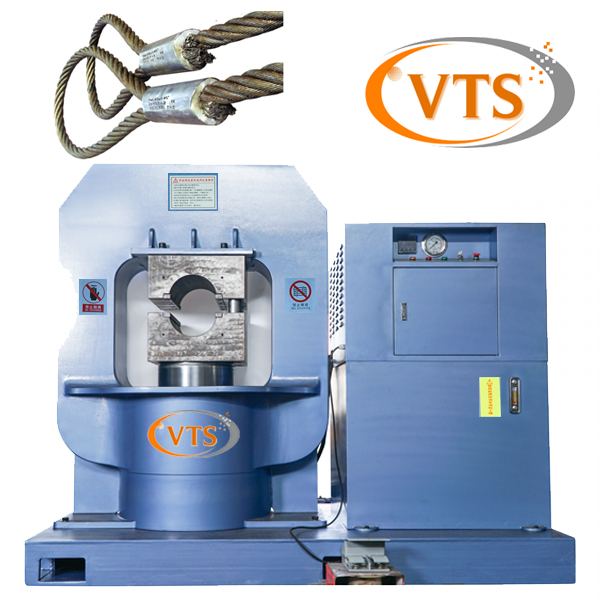

1000Ton Wire Rope Swaging Machine
Load capacity: 1000MT, 1600MT, 800MT, etc.
Casting alloy steel, high strength
- Description
- Inquiry
Description
1000Ton Wire Rope Swaging Machine
Introduction
GT Series Wire Rope Swaging Machine is our new generation product.
It has compact form, good looking appearance, and it is easy to operate.
The completed wire rope sling has advantage of high-intensity.
Features:
- It’s built in high strength alloy steel, high working stiffness.
- High and low pressure pump oil system makes piston upwards and downwards fast, improves the working efficiency.
- Strong corrosion resistance, saving wire rope cost
- Ensure exact length
- An emergency stop button, quickly stop working.
- The dies are made of high quality die steel and undergo high temperature heat treatment, quenching, tempering, etc process, which makes them sturdy and durable.
Model and Specification:
| Model No. Specifications | GT-800 | GT-1000 | GT-1600 |
| Max. pressure capacity (MT) | 800 | 1000 | 1600 |
| Aluminum ferrules (one /multi-stage) | Φ42 /Φ52 | Φ44 /Φ56 | Φ54 /Φ72 |
| Power (KW) | 7.5 | 11 | 15 |
| Max. oil pressure (Mpa) | 56 | 56 | 56 |
| Max. piston stroke (mm) | 180 | 200 | 200 |
| Loaded speed (mm/sec) | 5 | 5 | 5 |
| Unloaded piston (mm/sec) | 8 | 8 | 10 |
| Dimension (L×W×H, mm) | 1800×700×1700 | 2200×1100×2000 | 2500×1300×2200 |
| Net weight (kg) | 3500 | 5500 | 8500 |
