1500KN Horizontal Tensile Test Machine
1500KN150 Ton Universal Horizontal Tensile Test Bench Machine Price
Load Capacity: 100Ton, 200Ton, 300Ton, 500Ton, 1000Ton, 1500Ton, etc.

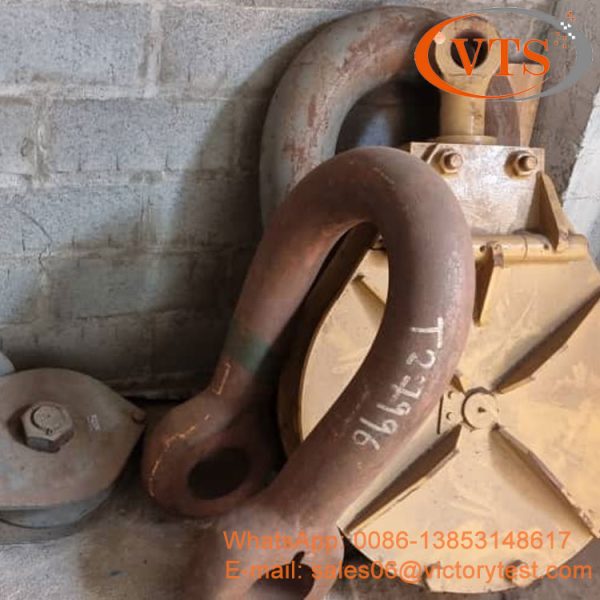

Test material: shackles, spreader beam, fiber rope, wire rope, chain, etc.
- Description
- Inquiry
Description

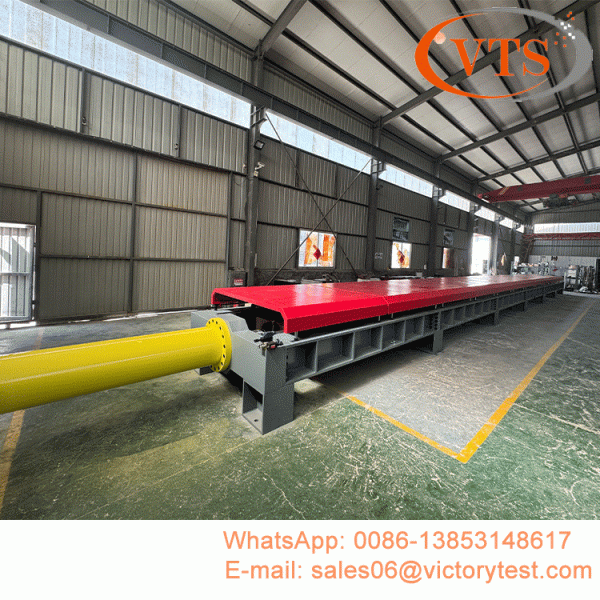

1500KN Horizontal Tensile Test Machine
(Model: WLW-1000, 1000KN capacity, 6 meter or 24meter, etc.)
(other load capacity: 2000KN, 3000KN, 5000KN, 10000KN, 15000KN, etc is available)
1. Introduction:
This 1500KN Horizontal Tensile Test Machine is used for tensile strength test of lifting materials, like shackles, spreader beam, lifting beam, fiber ropes, steel wire rope sling, cable, nylon rope, chain, webbing sling, etc. It adopts precision hydraulic power pack to load, high precision load cell to measure testing force, photoelectric encoder to measure displacement, computer control, proof load and break load test, testing space and piston stroke can be made according to the customer’s requirement. The machine is calibrated according to ASTM E4 and ISO75001.
2. Main technical parameters:
| Model | WLW-1000 | WLW-1500 | WLW-3000 | WLW-5000 | WLW-15000 |
| Load capacity | 1000KN | 1500KN | 3000KN | 5000KN | 15000KN |
| Accuracy | ±1% | ||||
| Effective testing space | 6M / 12 M | 6 M / 12 M | 6M / 12 M | 6M /12 M | 12M/ 20M |
| Max. piston stroke | 1000 mm | 1500mm | 1500mm | 2000mm | 2500mm |
| Power supply | 3-phase, 380V±10%, 50Hz (customized made) | ||||
Remark: the load capacity, testing space and piston stroke can be made according to your requirement.
For the other load capacity, it also can be made according to the customer’s order.
