ASTM D1599 pipes Hydrostatic Pressure Testing Machine

    ASTM D1599 pipes Hydrostatic Pressure Testing Machine

(10-40MPa, PVC, PE, etc pipe, 3 -20stations or more, 15℃- 95℃, touch PC control)

1.Introduction

ASTM D1599 pipes Hydrostatic Pressure Testing Machine is mainly used to determine the short-term hydraulic failure pressure of thermoplastic pipes, pipes and fittings, reinforced thermosetting plastic pipes and reinforced thermoplastic pipes. By applying hydraulic pressure to the sample, its ability to withstand pressure in a short period of time is observed, and when the sample reaches a rupture or failure state, the pressure value at this time is recorded.

The data obtained from the ASTM D1599 pipes Hydrostatic Pressure Testing Machine test is only used to predict the behavior of pipes, tubing and accessories under temperature, time, loading method and hoop stress conditions, and the performance under conditions similar to those used in actual tests. For manufacturers, these data can help them ensure that the products can perform as expected in the expected working environment; for design engineers, they can provide them with reliable data support for product design and selection.

ASTM D1599 pipes Hydrostatic Pressure Testing Machine adopts advanced control algorithm, loading pressure smooth, hold pressure stable, swelling rate high, which can ensure 100% success of test.

2. Main technical parameters

2.1 Pressure range: 0.2MPa -40MPa, other pressure unit is available like Bar, PSI

2.2. Resolution of pressure testing: 0.001MPa, 1PSI, 0.01Bar

2.3. Accuracy of pressure control: -1% ~ +2%

2.4. Testing pipe: φ16 – φ1600mm

2.5. Test station: 3 stations (standard supply) or even more

2.6. Time range: 0 – 10000h, positive timing or countdown, minimum setting time gradient 1 min.

2.7. Power supply of host machine: 1- phase, 220V±10%, 50Hz, 0.5kW

2.8 Power supply of pressure station: 3-phase, 380V±10%, 50Hz, 5kW

3. Characteristics

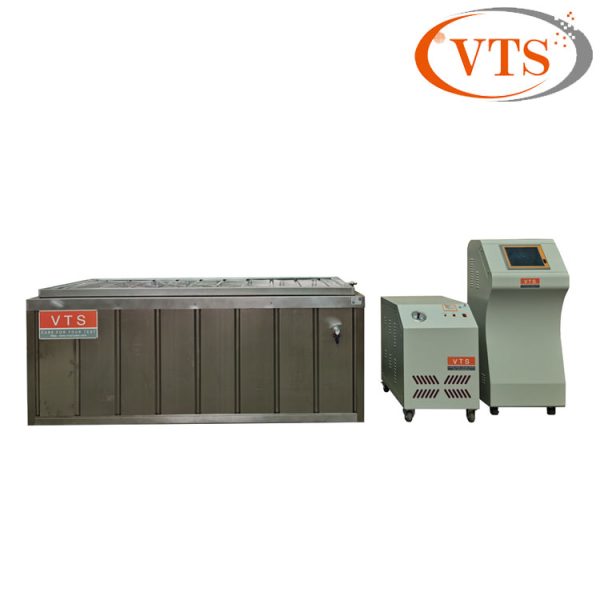

ASTM D1599 pipes Hydrostatic Pressure Testing Machine is composed of host machine (pressure control system), constant temperature water tank and professional end enclosure (end cap) three parts. Among them, the constant temperature water tank and professional end enclosure can be connected with different host machine, it can work together to complete the test.

3.1 Host machine (pressure control system)
1. Modular design
Plate installation, free combination of work stations, each control module can be connected to 5 independent stations, can display and control up to 50 stations. Each independent station can be arbitrarily set within the range of 0.2MPa to full scale, which is convenient and flexible to use; the failure of one station test does not affect the normal test of other stations, and the number of modules can be freely increased and reduced inside the host to facilitate upgrading and maintain.
2. Powerful function
1) It can carry out long-term hydrostatic test of pipeline and blast test of pipe, and can also be used for thermal stability test of thermoplastic pipe under hydrostatic condition;
2) It has the sample pretreatment function, and the test control is automatically turned on after the pretreatment is completed;
3) Automatically collect multiple water tank temperature, can preset the corresponding relationship between the water tank and the station and draw a temperature control curve;
4) Short-term real-time monitoring function with multi-station pressure curve, multi-station pressure control situation at a glance;
5) With the automatic cleaning function of the solenoid valve, the solenoid valve is easy to maintain. Multi-stage energy storage pressure control, stable pressure control, can extend the service life of the solenoid valve.
6) With automatic pressure relief function, pressure release can be done with just one button.
7) Units can be freely switched between MPa and Bar and PSI, meeting the operational requirements of personnel in different countries.
8) The two time display modes of positive timing and countdown can be switched freely.
9) At the same time, it has eight functions, such as leakage judgment, crack identification, real-time monitoring, power-off and pressure-maintaining, power-down data saving, caller data recovery, printing and storage test results.
10) It can automatically judge the caliber and material characteristics of the pipe, automatically formulate the boosting scheme and algorithm, stabilize the constant pressure, and have a high capacity expansion ratio to ensure 100% success of the test.
