Concrete Pipe Compression Testing Machine 600kN, 1000kN
Concrete Pipe, Reinforce Concrete Pipe Compression Testing Machine
Load capacity: 600kN, 1000kN
Test standard: ASTM 497-2019
- Description
- Inquiry
Description

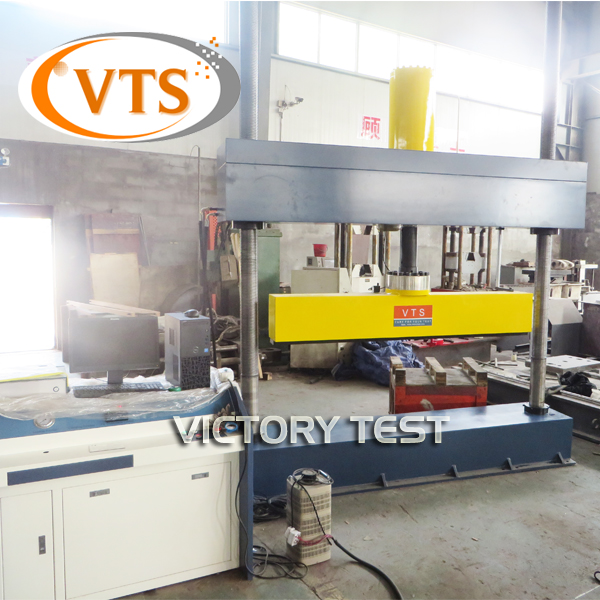

YAW-1000P Concrete Pipe Computerized Servo Hydraulic
Compression Testing Machine
(1000kN, 1 class accuracy)
1. Introduction:
This YAW-1000P Concrete Pipe Compression Servo Hydraulic Compression Testing Machine is mainly used to test the external load crushing strength test of concrete pipe, reinforced concrete pipe, etc. It is computer controlled, hydraulic servo type compression testing machine.
Testing standard:
ASTM C497, AASHTO T280.
2. Main Technical Parameters
| Parameter Model | YAW-1000P |
| Test machine class | 1 class |
| Test force range | 2%- 100% FS |
| Test force indicate relative error | Better than ±1% |
| Displacement resolution (mm) | 0.01 |
| Displacement deformation measurement range (mm) | 0-250 |
| Piston max. moving speed (mm/min) | 0.5 – 50 |
| Oil cylinder stroke (mm) | 250 |
| Distance between upper and lower compression plate (mm) | 0 – 3850 |
| Upper compression plate size/material | Length 2000mm, width 120mm steel, with rubber |
| Lower compression plate size/material | Length 2000mm, width 50-350mm (adjustable), hard wood |
| Power supply | 3-phase, 220V±10%, 60Hz |
| Dimension size L*W*H (mm) | 2680×630×5250 |
| Weight (kg) | 5500 |
