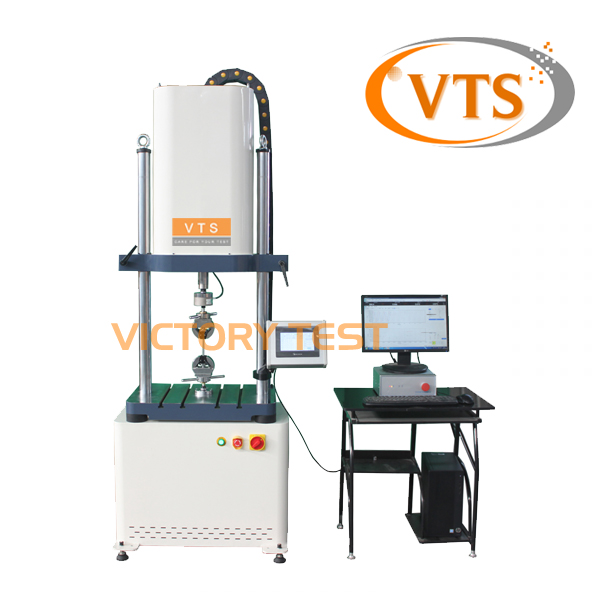

PWS-5 Electric Fatigue Testing Machine
(Electric actuator, Static 5kN and Dynamic ±5kN, 10Hz)
1. Main functions
PWS series electric servo fatigue testing machine is mainly used for static & dynamic mechanics performance test of materials and parts. Equipped with corresponding clamps it can be used to test mechanics of tension, compression, low cycle and high cycle, crack growth and other mechanics performance test. This machine is widely used in the field of auto industry, aerospace, ships industry.
2. Technical specification
| Model | PWS- 5 | |
| Maximum testing force kN | static | 5 |
| dynamic | ±5 | |
| Accuracy of testing force | Load | ±1% from 2%- 100% of F.S. |
| Displacement | ±0.5% of F.S. | |
| Extension | ±0.5%/1 of F.S. | |
| Frequency range (Hz) | 0.1- 10 | |
| Actuator type | Electric actuator | |
| Actuator stroke (mm) | 150 | |
| Load cell (kN) | 10, mounted on upper beam | |
| Displacement sensor max. measuring (mm) | 150, inside of actuator | |
| Wave forms | Sine wave, Square wave, Triangular wave, etc. | |
| Framework forms | Two columns with actuator mounted on top | |
| Column spacing (mm) | 500 | |
| Max. adjust testing space (mm) | 800 | |
| Upper beam | Electric up or down, adjust test space | |
| Host machine stiffness (N/mm) | 1.2*108 | |
| Specimen clamping | Manual wedge type tensile clamp | |
| Dimension of host machine (mm, L×W×H) | 800×450×1500 | |
| Net weight of host machine (kg) | 400 | |
It is a customized make testing machine.
