Force Standard Machine
Build-up Force Standard Machine
Load Cell Calibrator
Load capacity: 300kN, 600kN, 1000kN
Test accuracy: 0.05%, 0.1%, 0.03%
- Description
- Inquiry
Description

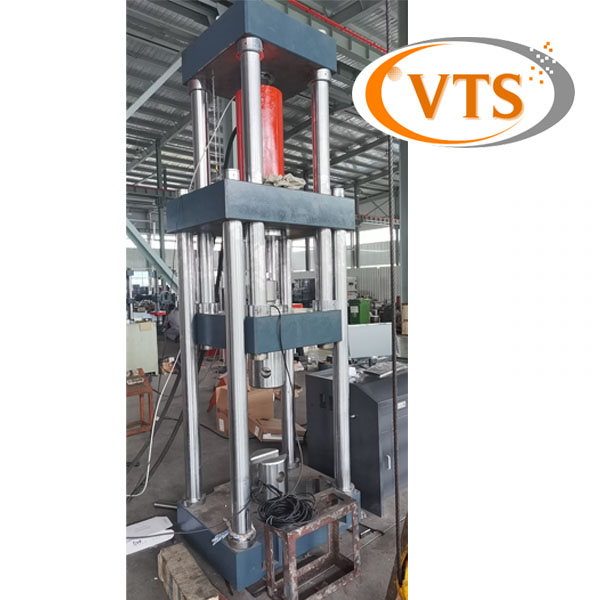

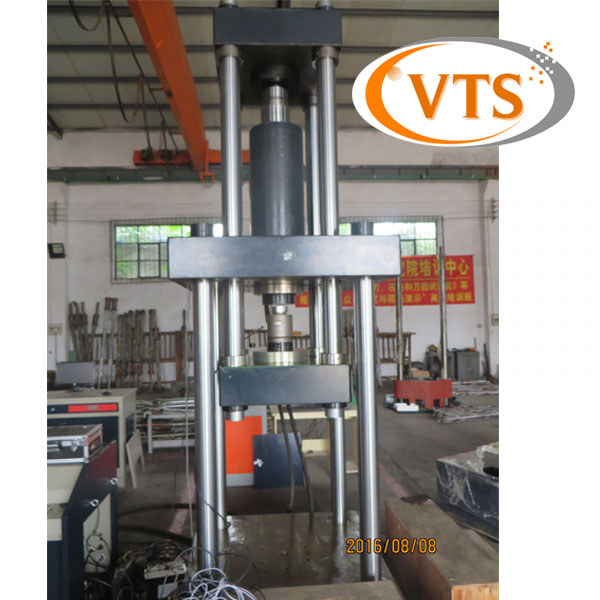

WAW-C Series Computerized Servo Hydraulic Force Standard Machine
(300kN- 1000kN, Build-up type, 0.05% test accuracy)
1. Applications:
WAW-C Series Computerized Electro-hydraulic Servo Hydraulic Force Standard Machine is used for calibrations of reference force standards, reference transducers, load cells, weighing sensor, standard dynamometer, etc. The metrological performance of load cell like its nonlinearity, repeatability, sensitivity, etc. It can perform both compression and tensile calibrations. It is used in metrology institute, aerospace measurement, national defense metrology, load cell manufacturer, etc. In standard, it conforms to JJG1116-2015, JJG669-2003, JJG144-2007, etc.
2. Main specifications:
| Parameter Model | WAW-300C | WAW-600C | WAW-1000C |
| Max. testing force (kN) | 300 | 600 | 1000 |
| Accuracy | 0.05% | 0.05% | 0.05% |
| Range of Testing Force (kN) | 30 – 300 | 60- 600 | 100- 1000 |
| Relative error of testing force (loading, unloading) | 10%-100% F.S, better than ±0.05% | 10%-100% F.S, better than ±0.05% | 10%-100% F.S, better than ±0.05% |
| Relative error of testing force repeatability | 10%-100% F.S, better than ±0.05% | 10%-100% F.S, better than ±0.05% | 10%-100% F.S, better than ±0.05% |
| Pre-load verification | 10% F.S, better than 0.01% | 10% F.S, better than 0.01% | 10% F.S, better than 0.01% |
| Load volatility | 10%-100% F.S, better than 0.003% | 10%-100% F.S, better than 0.003% | 10%-100% F.S, better than 0.003% |
| Directional error | 10%-100% F.S, better than 0.1% | 10%-100% F.S, better than 0.1% | 10%-100% F.S, better than 0.1% |
| Compress space (left and right, front and back, up and low, mm) | 400x400x400 | 450x450x400 | 600x600x800 |
| Tensile space (mm) | 300-700 adjustable | 400-800 adjustable | 400-800 adjustable |
| Standard load cell | Germany HBM | Germany HBM | Germany HBM |
| Dimension of host machine(mm) | 930X650X2600 | 980X690X2850 | 1050X750X3050 |
| Weight of host machine (kg) | 3200 | 4500 | 6000 |
| Power supply | 3-phase 5 wires (3 live lines, 1 null line, 1 PE), 380V, 50Hz | ||
