Rebar Tensile Testing Machine 600kN

Description

Rebar Tensile Testing Machine 600kN, 1000kN, 2000kN

Rebar, Steel Bar, Reinforced Concrete Bar Tensile Testing Machine is used for tensile strength test, elongation test, yield strength test, elongation rate of percentage at break, etc.

It has 100kN to 2000kN load capacity. It can test rebar with diameter from 8mm to 50mm.

In standard, it conforms to ASTM A615, ISO15630, BS4449, ISO6935, etc.

Main specifications:

2.1 Max. Test force: 600kN, 1000 kN, 2000kN

2.2. Measurement range of accuracy: 2%-100%;

2.3 Testing force accuracy: ±0.5% of reading value

2.4. Control range of stress rate: 1-60MPa/S;

2.5. Adjust range of test stress rate: 1N/mm²S^-1-60N/mm²S^-1;

2.6. Adjust range of test strain rate:0.00025/S-0.0025/S;

2.7. Precision of deformation measurement: ±0.5%;

2.8. Precision of displacement measurement: ±1%;

2.9. Control range of displacement rate: 0.5mm/min-50mm/min;

2.10. Tensile space: 850mm;

2.11. Compression space: 750mm;

2.12. Clamping diameter of rebar: φ13-φ40mm;

2.13. Clamping width of flat specimen: 120mm;

2.14. Clamping thickness of flat specimen: 0-40mm;

2.15. Diameter of upper and lower plate: 210×210mm;

2.16. Piston stroke: 250mm;

2.17. Span of bending roller: 50-450mm; width of roller: 140mm; diameter of roller: φ40mm

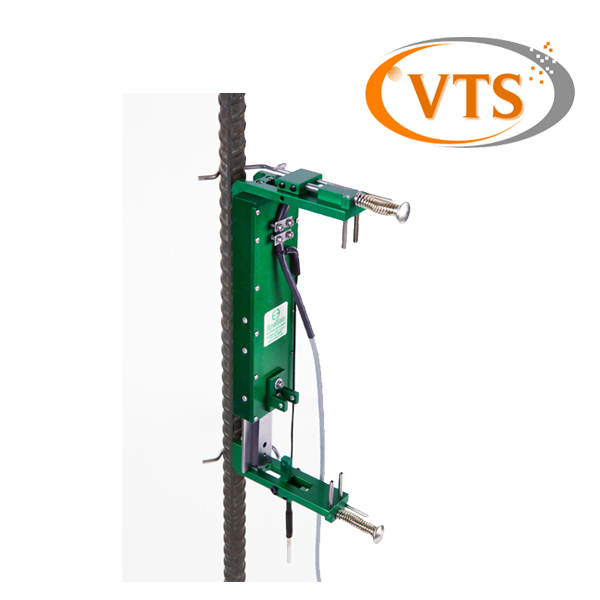

2.18. Deformation measurement: extensometer gauge length: 100mm; extension: 25mm;

2.19. Power supply: 3-phase 4-wire, 380V, 50 Hz or specified by users

2.20. Dimension: Host machine 1010×815×2500(mm) Power pack: 1100×640×1000(mm)

2.21. Weight: Host machine 3500kg, Power pack: 200kg.
