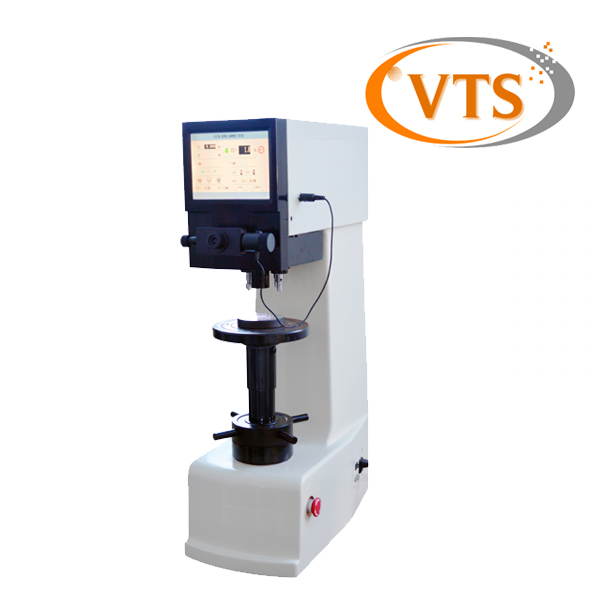

XHB-3000Z II Three Indenters Digital Brinell Hardness Tester
Touch Screen Three Indenters Brinell Hardness Tester
- Description
- Inquiry
Description
XHB-3000Z II Three Indenters Digital Brinell Hardness Tester
(Touch Screen, three indenters)
Application range:
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.
Technical Specification:
| Model | XHB-3000Z II | |
| Test Force | kgf | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
| N | 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N | |
| Test Range | 3.18～653HBW | |
| Loading Method | Automatic (Loading/Dwell/Unloading) | |
| Hardness Reading | Touch Screen Display | |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS | |
| Data Output | Built-in Printer, RS232 Interface | |
| Shifting between Objective and Indenter | Automatic Recognition and Shifting (Three Indenters, Two Objectives) | |
| Objective | 1×, 2× | |
| Eyepiece | 20× | |
| Total Magnification | 20×, 40× | |
| Resolution | 1.25μm, 0.625μm | |
| Dwell Time | 0~60s | |
| Max. Height of Specimen | 260mm | |
| Throat | 150mm | |
| Power Supply | AC220V, 50Hz | |
| Execute Standard | ISO 6506, ASTM E10-12, JIS Z2243, GB/T 231.2 | |
| Dimension | 535×260×890mm, Packing Dimension: 820×460×1170mm | |
| Weight | Net Weight: 150kg, Gross Weight: 180kg | |
