Tester electronic de duritate Brinell DHB-3000
DHB-3000 Electronic Brinell Hardness Tester is used for brinell hardness test of cast iron, steel product, non-ferrous metals and soft alloys.
- Descriere
- Anchetă
Descriere

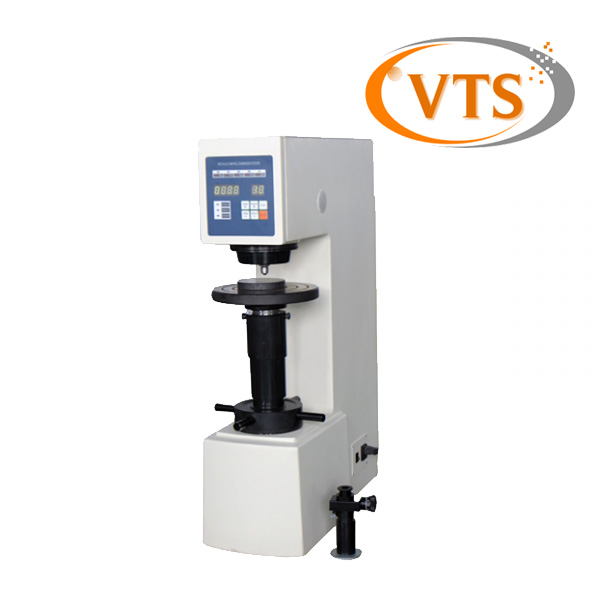

DHB-3000 Elecctronic Brinell Hardness Tester
(Electronic type, Economic Type)
Aplicații:
DHB-3000 Electronic Brinell Hardness Tester adopts is an affordable electronic hardness tester with high accuracy, reliability and durability. It is applied at workshops and measurement department for determining the Brinell hardness of the ferrous and non-ferrous metals.
Specificatii tehnice
| Forța de testare | 612.9N (62.5kgf) 4900N (500kgf) 980N (100kgf) 7355N (750kgf) 1226N (125kgf) 9800N (1000kgf) 1839N (187.5kgf) 14700N (1500kgf) 2452N (250kgf) 29400N (3000kgf) |
| Testing Range | 8-650 HBW |
| Hardness Display | Check the Table of Brinell Hardness Scale |
| Magnification of Microscope | 20× Mechanic Microscope |
| Max Height of Specimen | 220mm |
| Instrument Throat | 135mm |
| Alimentare electrică | AC220V/50Hz |
| Execution Standard | GB/T230.2, JIG112, EN-ISO6508, ASTM E-18 |
| Overall Dimension | 753×542 ×205mm |
| Greutate netă | 130kg |
