IEC61395 Creep Test Machine of Overhead Conductor

Descriere

IEC61395 Creep Test Machine of Overhead Conductor

WLW-300 Computerized Horizontal Tensile Testing Machine

(Capacitate de încărcare: 300kN, Creep Test)

1. Funcţie:

The testing machine is mainly used to do creep test of overhead conductors, it also can be used for stress-strain test of overhead conductors. The testing machine adopts hydraulic cylinder to load, load cell to measure, computer to print and computer to display test data and other advanced technology.

2. Specificatii tehnice principale

2.1 Max. Forța de testare: 300KN

2.2 Soneria forței de testare: 8kN-1000kN

2.3 Precizia forței de testare: mai bine de ±1% din valoarea indicatoare

2.4 Rezoluția forței de testare: 1/100000

2.5 Spațiu de testare (nu include accident vascular cerebral cu piston): 400-13000mm (500mm for interval)

2.6 Plug way: manual plug

2.7 Oil-cylinder piston stroke: 1500mm

2.8 Displacement measuring range: 1500mm

2.9 Rezoluția măsurării deplasării: 0.01mm

2.10 Crossbeam quick tensile speed: not lower than 100mm/min

2.11 Viteza de testare a încărcăturii: 0-70mm/min

2.12 Height of work bench: 450mm

2.13 Metoda de măsurare a forței de testare: load sensor 300kN

2.14 Control test method: computer auto control all the testing process, the testing force and testing

curve displayed on the PC, it auto process the testing date according to relative testing standard.

2.15 Clamp methods of specimen: hydraulic clamp, for connection part is supplied by the buyer.

2.16 Sunt afișate mai multe curbe de testare: vigoare- deplasare, forță-timp, vigoare- deformare, stres-

tulpină, timp- deplasare, etc.

2.17 Dulapul de control și cadrul principal sunt separate, it also has safety protection shield.

2.18 Dimensiunea de ansamblu (L x l x H): 21000x1900x1455mm (for reference)

2.19 Greutate: 8000 kgs (for reference)

2.20 Putere: 3 fază, 4 fire, 380V±10%, 50Hz

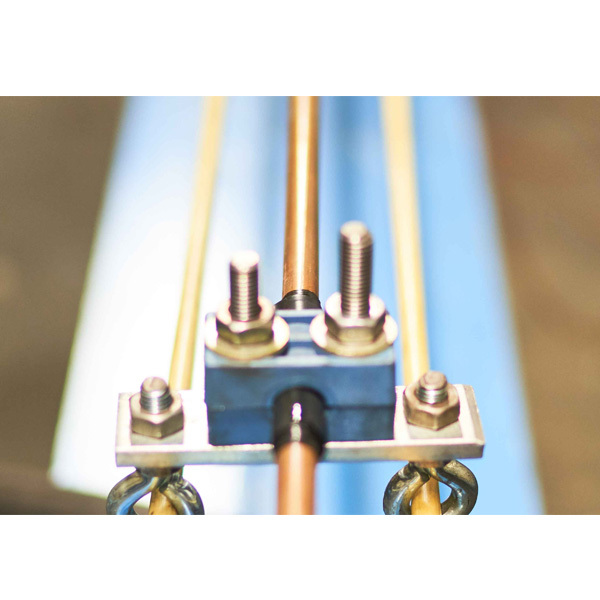

3. Probă de testare
