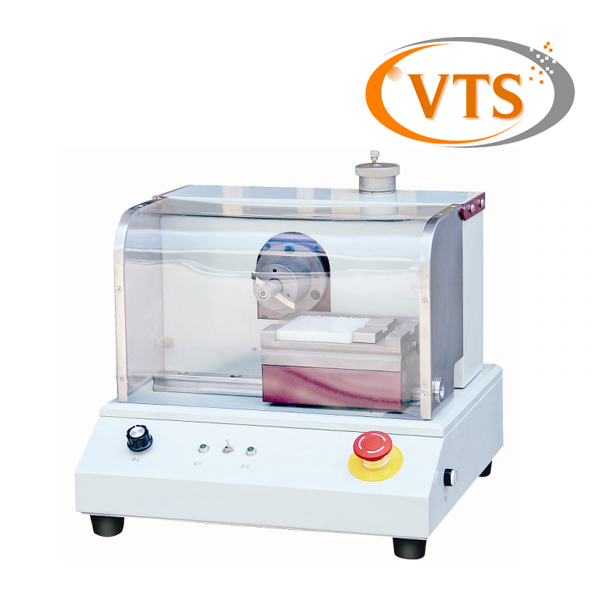

自動ノッチマシン

説明

自動ノッチマシン

主な機能

This machine is used to make notch for charpy impact test of plastic specimen. It can put 20 pieces of samples at one time, it can process 60 samples in 10 minute. It has very high processing accuracy. It improves the work efficiency. 標準, it conforms to ISO179, ISO180.

The knife is made by imported steel alloy, the hardness is bigger than HRC60, long life.

主な技術仕様
1. Work bench stroke: >90mm;

2. Knife working speed: 0~ 90mm/min

3. Sample size: 80mm×10mm×4mm (can customized made)

4. Knife notch type: A type (others is optional)

5. Feeding speed: 0~2.5mm

6. Feeding stroke: 10mm

7. Feeding method: electric feeding and return

8. 電源: 1-段階, 220V, 50Hz, 400W

9. Size of machine: 450mm×390mm×360mm

10. Weight of machine: 25kg

Knife specification:

A type knife: 45° ± 0.2° r = 0.25 ± 0.05 (標準供給)

B type knife: 45° ± 0.2° r = 1.0 ± 0.05 (オプション)

C type knife: 45° ± 0.2° r = 0.1 ± 0.02 (オプション)
