Marque VTS de machine d'essai de compression de tuyau en béton d'ASTM C497
This YAW-1000P Concrete Pipe Compression Servo Hydraulic Compression Testing Machine is mainly used to test the external load crushing strength test of concrete pipe, reinforced concrete pipe, etc.. It is computer controlled, hydraulic servo type compression testing machine.
- Description
- Enquête
Description
Marque VTS de machine d'essai de compression de tuyau en béton d'ASTM C497

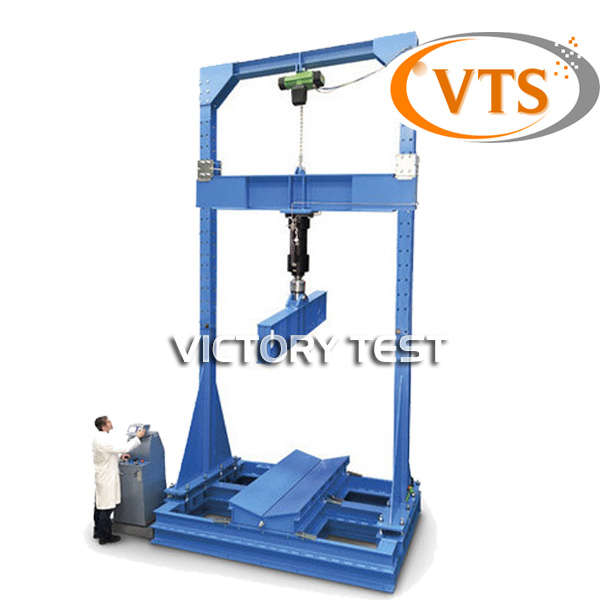

1000kN Concrete Pipe Computerized Servo Hydraulic Compression Testing Machine YAW-1000P
(1000kN, electric hoist lift up, 400mm max. course du piston,test space: 2600×2500mm, pipe length 3000mm)
1.Introduction:
Our YAW-1000P Concrete Pipe Compression Servo Hydraulic Compression Testing Machine is mainly used to test the external load crushing strength test of concrete pipe, reinforced concrete pipe, etc.. It is computer controlled, hydraulic servo type compression testing machine.
Norme de test:
ASTM C497, AASHTO T280.
2. Main Technical Parameters
| Parameter Model | YAW-1000P |
| Test machine class | 0.5 classe |
| Test force range | 2%- 100% FS |
| Test force indicate relative error | Better than ±1% |
| Displacement resolution (MM) | 0.01 |
| Displacement measurement range (MM) | 0-400 |
| Piston max. moving speed (mm/min) | 0.5 – 70 |
| Oil cylinder stroke (MM) | 400 |
| Distance between upper compression platen and ground(MM) | 0 – 2500 |
| Distance between two columns (MM) | 2600 |
| Upper compression plate size/material | Length 3000mm, width 350mm steel, with rubber |
| Alimentation | 3-phase, 380V±10 %, 50Hz |
| Dimension size L*W*H (MM) | 3300×3000×5520 |
