Machine d'essai de compression de béton numérique YES-2000 2000KN
Modèle: YES-2000
Capacité de charge: 2000kN
Matériaux de test: concrete tube, concrete cylinder, etc..
Mode de contrôle: manual loading/unloading, affichage numérique
- Description
- Demande
Description

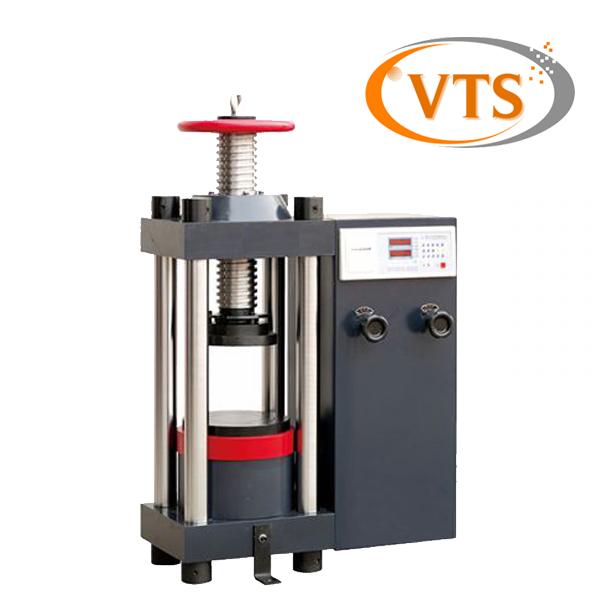

YES-2000 Digital Compression Testing Machine
(2000kN, 200Tonne, Digital Display, Economic Type)
Application et fonctions
The series digital compression testing machine is mainly used for compressive strength test of concrete, ciment, brique, pierre et autres matériaux de construction. It can also be used to test the mechanical properties of other materials.
This machine uses hydraulic loading, electronic dynamometer, and has functions such as the load figures show, loading rates show, the maximum load to maintain, as well as overload protection and power features data retention and so on.
Principales spécifications techniques
| Modèle | YES-2000 |
| Max Load Capacity(kN) | 2000 |
| Range of measurement | 4%~100%FS |
Relative error of test force value | ≤±1% |
| Upper and lower plate size | φ225×φ300mm |
| Maximum distance between upper and lower plate | 320mm |
| Max piston stroke (travel journey | 30mm |
| Piston diameter | φ250mm |
| Hydraulic pump rated pressure | 40MPa |
| Electric motor power | 3-phase 380V, 50Hz |
| Host external dimensions (mm) （L*W*H） | 800×500×1200 |
| Poids net | About 750kg |
