Machine d'essai de compression de trou d'homme 1000kN
Manhole compression test
Capacité de chargement: 600kN, 1000kN
Standard de test: EN124, EN1433
- Description
- Enquête
Description

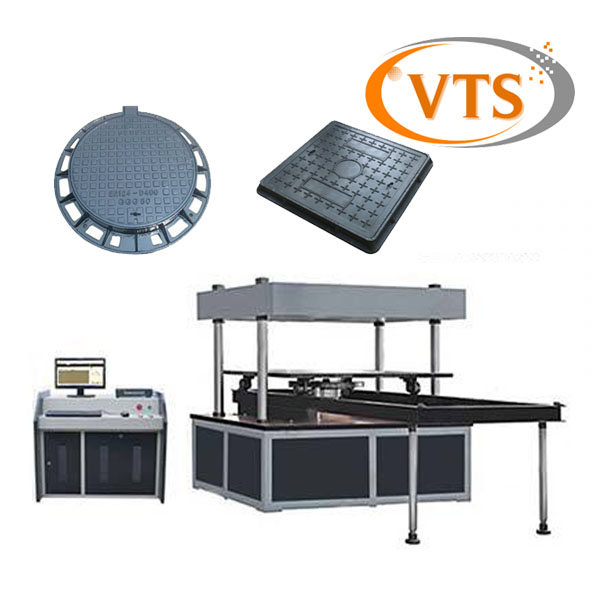

WAW-1000G Manhole Computerized Servo Hydraulic
Compression Testing Machine
(4-Colonne, 1000kN, 1 class accuracy)
1. Introduction:
This WAW-1000G Computerized Servo Hydraulic Compression Testing Machine adopts four columns and floor-standing type structure, it is used to do compression test of manhole. It is an ideal testing machine for enterprises’ quality control department, teaching in university and colleges or scientific research institution, etc..
Test material and industry:
Various Manholes, like spheroidal graphite cast iron manhole, steel reinforced concrete, etc..
Norme de test:
EN124, EN1433, ISO7500-1, ASTM E4
2. Main Technical Parameters
| Parameter Model | WAW-1000G |
| Gamme de force d'essai (kN) | 20 – 1000 |
| Accuracy of force | ±1% /Class 1 (better than ASTM E4, ISO7500-1) |
| Load measuring | High precision load cell |
| Host machine structure | 4 columns |
| Oil cylinder | Underneath type |
| Piston stroke (millimètre) | 350 |
| Piston moving speed (mm/min) | 0.01 – 50 |
| Closed loop control | Computer control Italy ATOS servo valve |
| Load control speed (kN/s) | 0.1 ~ 20 |
| Displacement measuring | High precision encoder |
| Résolution de mesure de déplacement (millimètre) | 0.01 |
| Deformation measuring | Magnetic base Dial gauge |
| Deformation measuring resolution (millimètre) | 0.01 |
| Test blocks sizes (millimètre) | Φ250, 150×250, Φ150, Φ75, 75×250 |
| Effective test space (millimètre) | 1200×1200 (facultatif: 1500×1500) |
| Distance entre plaque supérieure et plaque inférieure (millimètre) | 500 |
| Manhole transmit into test space | Movable trolley |
| Source de courant | 3-phase, 380V±10 %, 50Hz |
| Dimension size L*W*H (millimètre) | 1555×1240×1835 (host machine, without trolley) 1555×2600×1835 (with trolley) |
| Poids (kg) | 5000 |
